    SenseCAP T1000 Payload Decoder

    SenseCAP T1000 Payload Decoder

    Alex @ AEQ-WEB

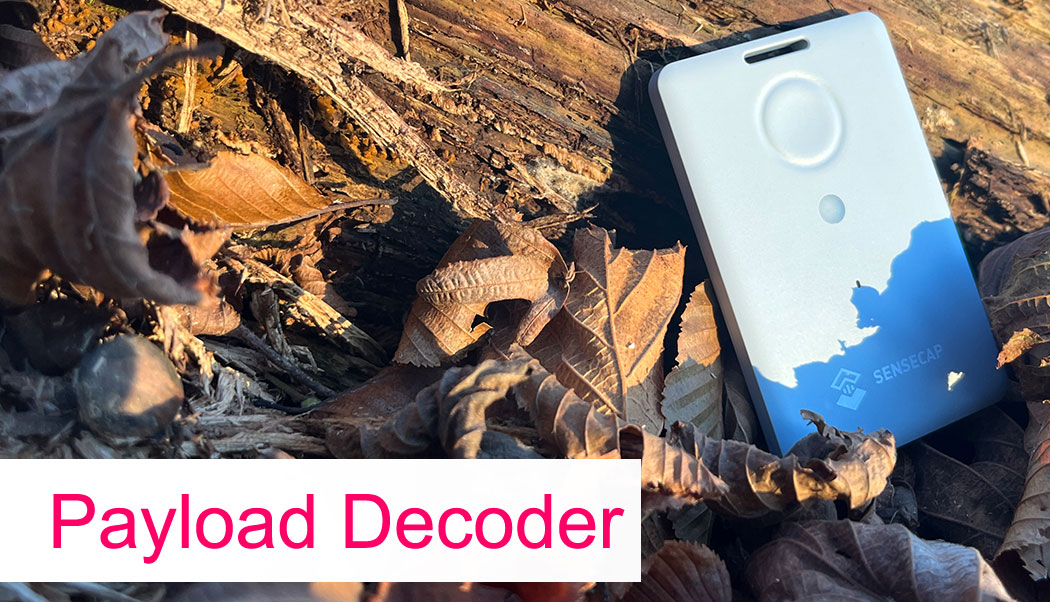

    Der SenseCAP T1000 ist ein sehr günstiger LoRaWAN GPS-Tracker mit einem großen Funktionsumfang und zahlreichen Sensoren. Der Hersteller bietet neben der Hardware auch Software-Dienstleistungen an und stellt für seine Endgeräte und Gateways einen eigenen LoRaWAN Netzwerkserver und Cloud-Applikationen bereit. Selbstverständlich kann der SenseCAP T1000 auch an das Community-Netzwerk TTN (The Things Network) angebunden werden. Seeed stellt zwar einen Javascript Decoder für TTN, Helium und weitere Netzwerke bereitstellt, aber die decodierten Payload-Parameter werden in einem sehr speziellen Format (vermutlich für das SenseCAP Portal optimiert) ausgegeben. Viele LoRaWAN Applikationen wie LoWTrack oder der TTN-Mapper funktionieren mit dem originalen Decoder nicht. Aufgrund zahlreicher Anfragen wurde ein "TTN-Freundlicher" Javascript Decoder geschrieben, der mit herkömmlichen Tools wie LoWTrack funktioniert.


    Hinweis: Dieser Payload-Decoder wurde sorgfältig mit einem Tracker und mit den Payload-Beispielen von der offiziellen Dokumentation entwickelt und getestet. Es kann nicht garantiert werden, dass dieser Decoder auch mit zukünftigen neueren Firmware-Versionen kompatibel ist. Die Verwendung erfolgt auf eigene Gefahr! Für die Richtigkeit und Funktionalität wird keine Haftung übernommen!


    Werbung:

    Testinformation
    Dieser Decoder wurde mit TTN V3 und der App LoWTrack getestet:
    T1000 Software Version: 1.14
    T1000 Hardware Version: 1.6
    Testdatum: 26.11.2023

    /*
     * Javascript Decoder for Seeed SenseCAP T1000 LoRaWAN GPS Tracker Version 1.1 (@aeqweb)
     * More Information at: https://www.aeq-web.com/seeed-sensecap-t1000-lorawan-gps-tracker-ttn-payload-decoder/
     */
    function decodeUplink(input) {
        const bytes = input['bytes']
        const fport = parseInt(input['fPort'])

        const packetID = bytes[0];
        var decoded = {};


        if (packetID == 1) {
            const batt = bytes[1];
            const swv = bytes[2] + "." + bytes[3];
            const hwv = bytes[4] + "." + bytes[5];
            const wm = getWorkMode(bytes[6]);
            const ps = getPosStrategy(bytes[7]);
            const hiv = bytes[8] << 8 | bytes[9];
            const uiv = bytes[10] << 8 | bytes[11];
            const eiv = bytes[12] << 8 | bytes[13];
            const so = bytes[14];
            const sm = bytes[15];
            const me = Boolean(bytes[16]);
            const mt = bytes[17] << 8 | bytes[18];
            const ms = bytes[19] << 8 | bytes[20];
            const ml = Boolean(bytes[21]);
            const mo = bytes[22] << 8 | bytes[23];
            const se = Boolean(bytes[24]);
            const st = bytes[25] << 8 | bytes[26];
            const te = Boolean(bytes[27]);
            const tu = bytes[28] << 8 | bytes[29];
            const ts = bytes[30] << 8 | bytes[31];
            const th = (bytes[32] << 8 | bytes[33]) / 10;
            const tl = (bytes[34] << 8 | bytes[35]) / 10;
            const tr = bytes[36];
            const le = Boolean(bytes[37]);
            const lu = bytes[38] << 8 | bytes[39];
            const ls = bytes[40] << 8 | bytes[41];
            const lh = bytes[42] << 8 | bytes[43];
            const ll = bytes[44] << 8 | bytes[45];
            const lw = bytes[46];

            var sens = "unkown"
            var sosm = "unkown"


            if (so) {
                sens = "Temp-Light Sen. on"
            } else if (sm === 0) {
                sens = "Temp-Light Sen. off"
            }

            if (sm) {
                sosm = "Continuous Mode"
            } else if (sm === 0) {
                sosm = "Single Mode"
            }

            decoded = {
                packet: "Heartbeat",
                battery: batt,
                softwareV: swv,
                hardwareV: hwv,
                workMode: wm,
                posStrategy: ps,
                heartbeatInterval: hiv,
                uplinkInterval: uiv,
                EventInterval: uiv,
                sensors: sens,
                sosMode: sosm,
                motionEventMode: me,
                motionThreshold: mt,
                motionStartInterval: ms,
                motionlessEvent: ml,
                motionlessTimeout: mo,
                shockEvent: se,
                shockThreshold: st,
                tempEvent: te,
                tempInterval: tu,
                tempSample: ts,
                tempThresholdMax: th,
                tempThresholdMin: tl,
                tempThresholdRule: tr,
                lightEvent: le,
                lightInterval: lu,
                lightSample: ls,
                lightThresholdMax: lh,
                lightThresholdMin: ll,
                lightWarningType: lw
            }
        } else if (packetID == 2) {
            const batt = bytes[1];
            const swv = bytes[2] + "." + bytes[3];
            const hwv = bytes[4] + "." + bytes[5];
            const wm = getWorkMode(bytes[6]);
            const ps = getPosStrategy(bytes[7]);
            const hiv = bytes[8] << 8 | bytes[9];
            const uiv = bytes[10] << 8 | bytes[11];
            const eiv = bytes[12] << 8 | bytes[13];
            const so = bytes[14];
            const sm = bytes[15];
            var sens = "unkown"
            var sosm = "unkown"


            if (so) {
                sens = "Temp-Light Sen. on"
            } else if (sm === 0) {
                sens = "Temp-Light Sen. off"
            }

            if (sm) {
                sosm = "Continuous Mode"
            } else if (sm === 0) {
                sosm = "Single Mode"
            }

            decoded = {
                packet: "Heartbeat",
                battery: batt,
                softwareV: swv,
                hardwareV: hwv,
                workMode: wm,
                posStrategy: ps,
                heartbeatInterval: hiv,
                uplinkInterval: uiv,
                EventInterval: uiv,
                sensors: sens,
                sosMode: sosm
            }
        } else if (packetID == 5) {
            const batt = bytes[1];
            const wm = getWorkMode(bytes[2]);
            const ps = getPosStrategy(bytes[3]);
            const sm = bytes[4];
            var sosm = "unkown"

            if (sm) {
                sosm = "Continuous Mode"
            } else if (sm === 0) {
                sosm = "Single Mode"
            }

            decoded = {
                packet: "Heartbeat",
                battery: batt,
                workMode: wm,
                posStrategy: ps,
                sosMode: sosm
            }
        } else if (packetID == 6) {
            const sta = (bytes[1] << 16 | bytes[2] << 8 | bytes[3]);
            const mcnt = bytes[4];
            const utc = unixToDateTime(bytes[5] << 24 | bytes[6] << 16 | bytes[7] << 8 | bytes[8]);
            const lon = (bytes[9] << 24 | bytes[10] << 16 | bytes[11] << 8 | bytes[12]) / 1000000;
            const lat = (bytes[13] << 24 | bytes[14] << 16 | bytes[15] << 8 | bytes[16]) / 1000000;
            const tmp = ((bytes[17] & 0x80 ? 0xFFFF << 16 : 0) | bytes[17] << 8 | bytes[18]) / 10;
            const lgt = (bytes[19] << 8 | bytes[20]);
            const batt = bytes[21];

            decoded = {
                packet: "GNSS Location & Sensor Data",
                eventStatus: sta,
                motionCount: mcnt,
                utcTime: utc,
                longitude: lon,
                latitude: lat,
                temperature: tmp,
                light: lgt,
                battery: batt
            }
        } else if (packetID == 9) {
            const sta = (bytes[1] << 16 | bytes[2] << 8 | bytes[3]);
            const mcnt = bytes[4];
            const utc = unixToDateTime(bytes[5] << 24 | bytes[6] << 16 | bytes[7] << 8 | bytes[8]);
            const lon = (bytes[9] << 24 | bytes[10] << 16 | bytes[11] << 8 | bytes[12]) / 1000000;
            const lat = (bytes[13] << 24 | bytes[14] << 16 | bytes[15] << 8 | bytes[16]) / 1000000;
            const batt = bytes[17];

            decoded = {
                packetType: "GNSS Location",
                eventStatus: sta,
                motionCount: mcnt,
                utcTime: utc,
                longitude: lon,
                latitude: lat,
                battery: batt
            }
        } else if (packetID == 0x11) {

            const utc = unixToDateTime(bytes[5] << 24 | bytes[6] << 16 | bytes[7] << 8 | bytes[8]);
            const batt = bytes[13];

            if (bytes[11] != 0x80 && bytes[9] != 0x80) {
                const tmp = ((bytes[9] & 0x80 ? 0xFFFF << 16 : 0) | bytes[9] << 8 | bytes[10]) / 10;
                const lgt = (bytes[11] << 8 | bytes[12]);

                decoded = {
                    packet: "Positing status",
                    utcTime: utc,
                    temperature: tmp,
                    light: lgt,
                    battery: batt
                }
            } else {
                decoded = {
                    packet: "Positing status",
                    utcTime: utc,
                    battery: batt
                }
            }



        } else if (packetID == 0x0D) {
            const ec = (bytes[1] << 24 | bytes[2] << 16 | bytes[3] << 8 | bytes[4]);

            decoded = {
                packet: "Positioning Timeout",
                longitude: 0,
                latitude: 0,
                errorCode: ec
            }

        } else {
            decoded = {
                packetType: "unkown",
                packetID: packetID
            }
        }

        return {
            data: decoded
        }

    }


    function convertToDec(b) {
        var return_value = parseInt(b, 16);
        return return_value;
    }

    function unixToDateTime(unixtime) {
        var date = new Date(unixtime * 1000);
        var months = ['Jan', 'Feb', 'Mar', 'Apr', 'May', 'Jun', 'Jul', 'Aug', 'Sep', 'Oct', 'Nov', 'Dec'];
        var hours = date.getHours();
        var minutes = "0" + date.getMinutes();
        var seconds = "0" + date.getSeconds();
        var year = date.getFullYear();
        var month = months[date.getMonth()];
        var day = date.getDate();
        var DateTime = day + '-' + month + '-' + year + ' ' + hours + ':' + minutes.substr(-2) + ':' + seconds.substr(-2);
        return DateTime;
    }

    function getPosStrategy(ps) {
        var psText = "";
        switch (ps) {
            case 0:
                psText = "Only GNSS";
                break;
            case 1:
                psText = "Only WiFi";
                break;
            case 2:
                psText = "WiFi + GNSS";
                break;
            case 3:
                psText = "GNSS + WiFi";
                break;
            case 4:
                psText = "Only Bluetooth";
                break;
            case 5:
                psText = "Bluetooth + WiFi";
                break;
            case 6:
                psText = "Bluetooth + GNSS";
                break;
            case 7:
                psText = "Bluetooth + WiFi + GNSS";
                break;
            default:
                psText = "unkown";
        }
        return psText;
    }


    function getWorkMode(wm) {
        var wmText = "";
        switch (wm) {
            case 0:
                wmText = "Standby Mode";
                break;
            case 1:
                wmText = "Periodic Mode";
                break;
            case 2:
                wmText = "Event Mode";
                break;
            default:
                wmText = "unkown";
        }
        return wmText;
    }
